Procesamiento de documentos con Mistral OCR-4

Este notebook aplica Mistral OCR-4 al Informe 10-Q de la SEC de Nvidia y demuestra cinco capacidades de manejo de tablas y salida:

#	Característica	Parámetro
1	Salida Markdown	Campo de respuesta predeterminado .markdown

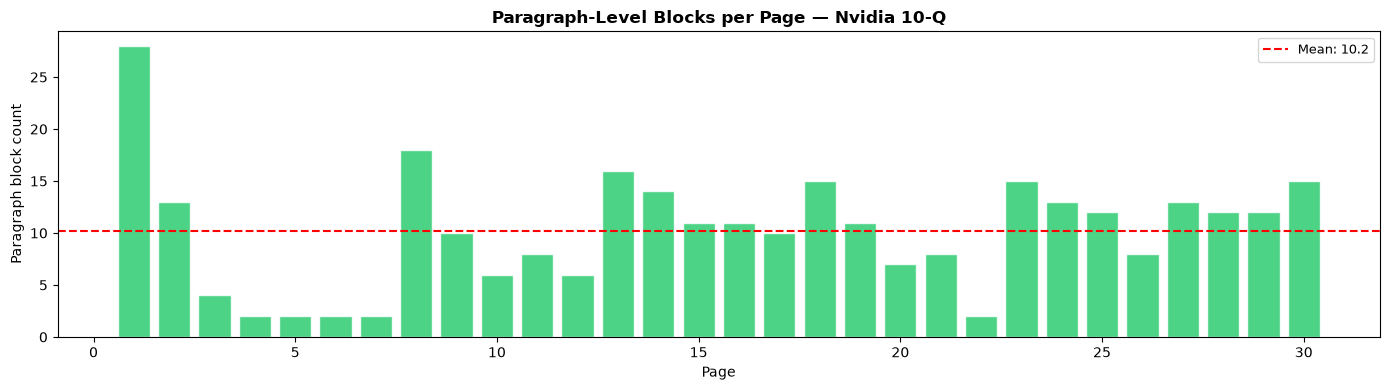

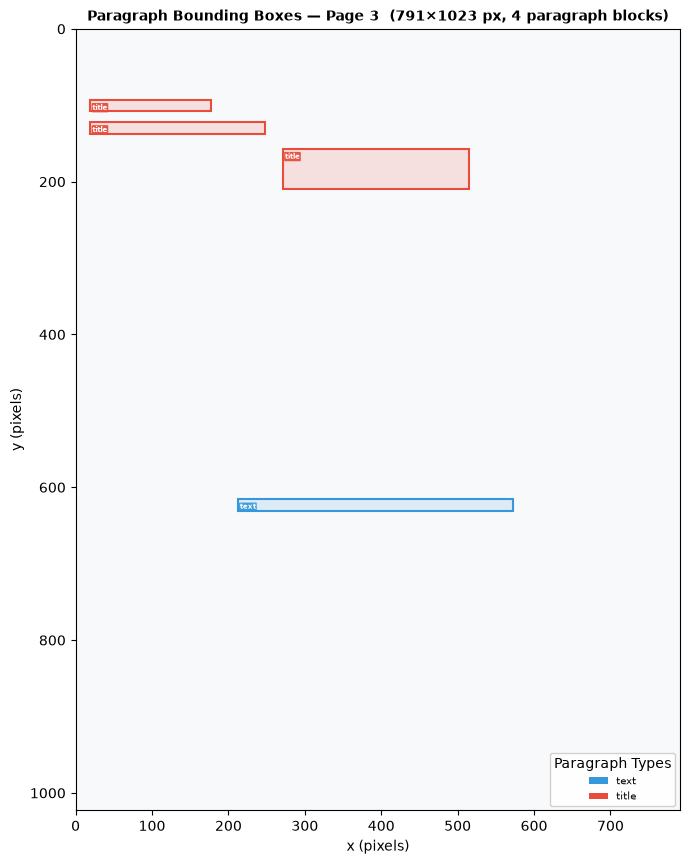

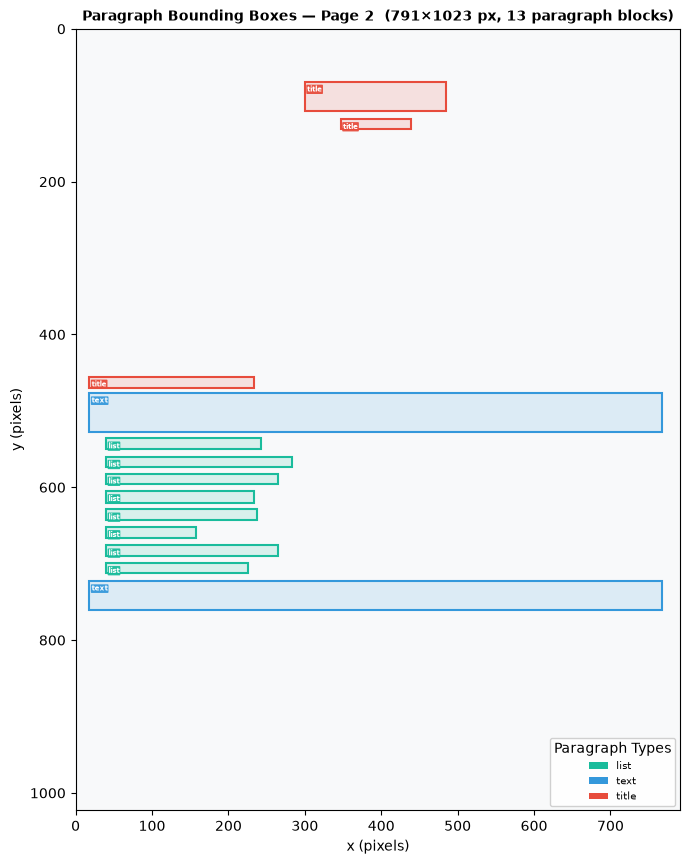

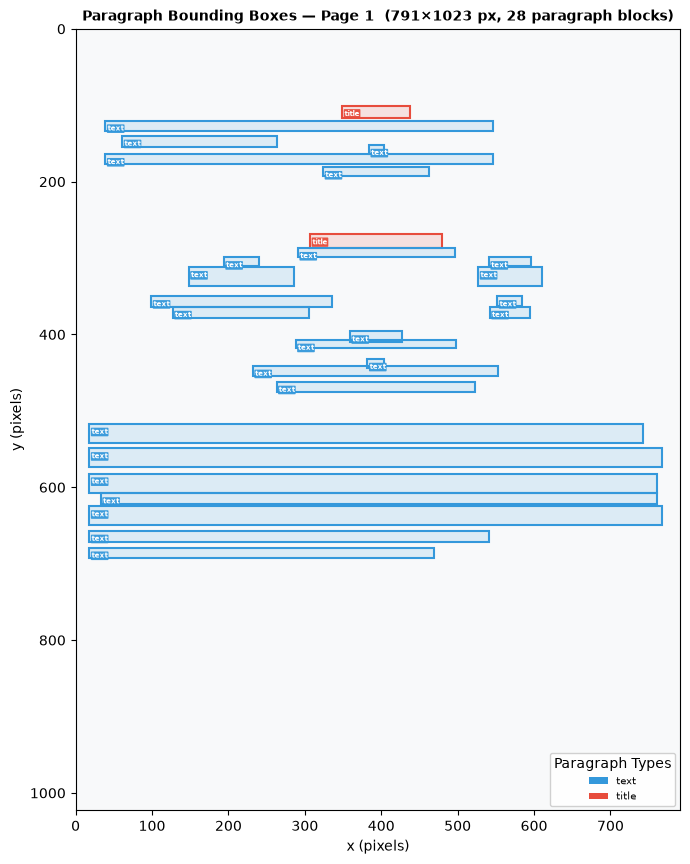

2	Manejo de tablas en la página 6	Quinta opción: normalizar celdas vacías antes de la conversión a DataFrame

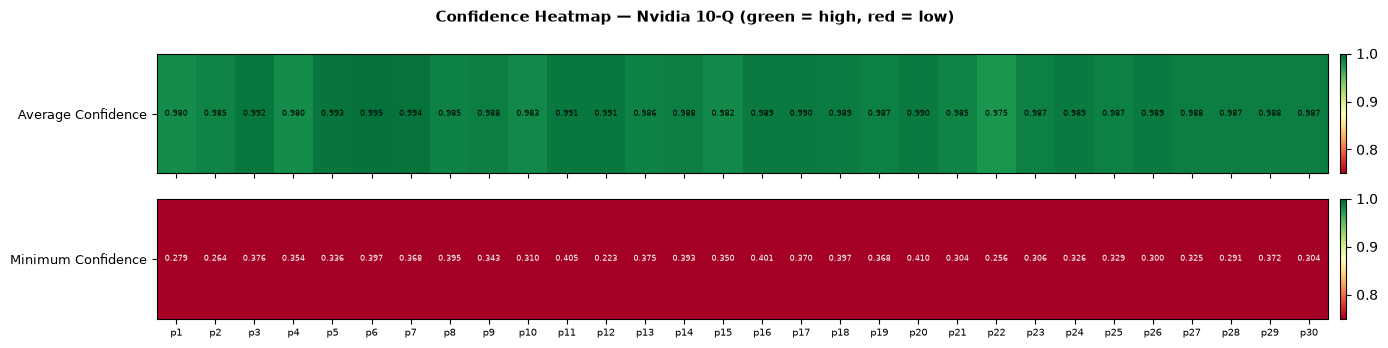

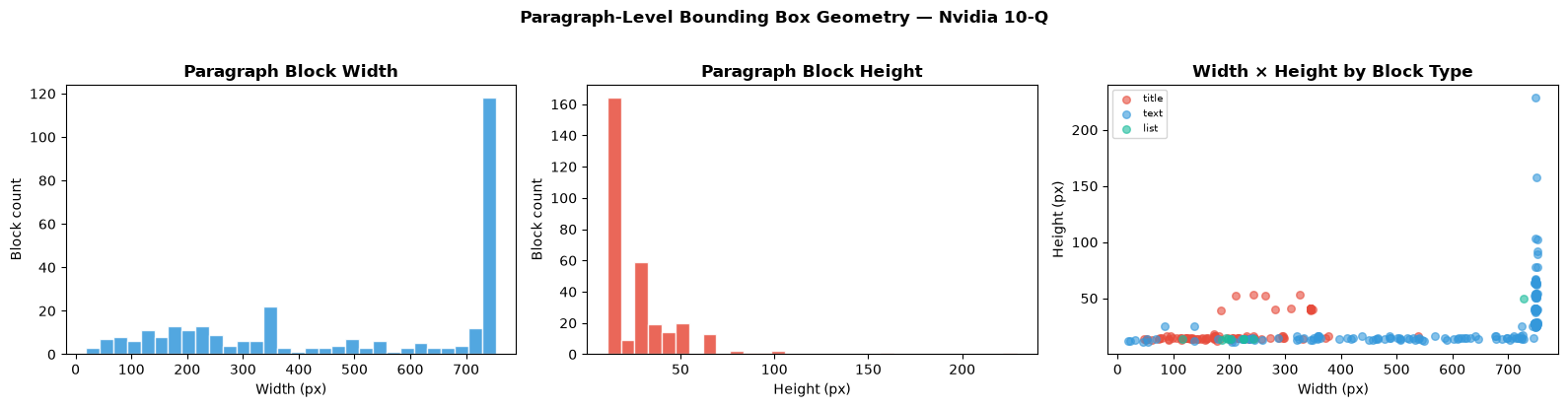

3	Cajas delimitadoras a nivel de párrafo	include_blocks: true — text / title / list tipos de bloque

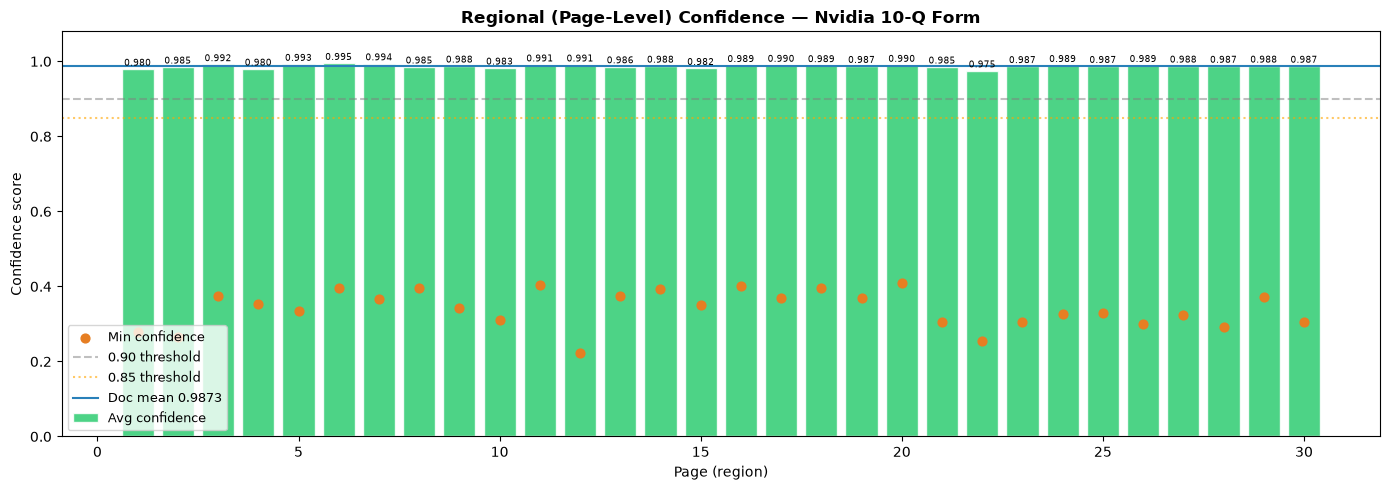

4	Confianza a nivel regional	confidence_scores_granularity: 'page'

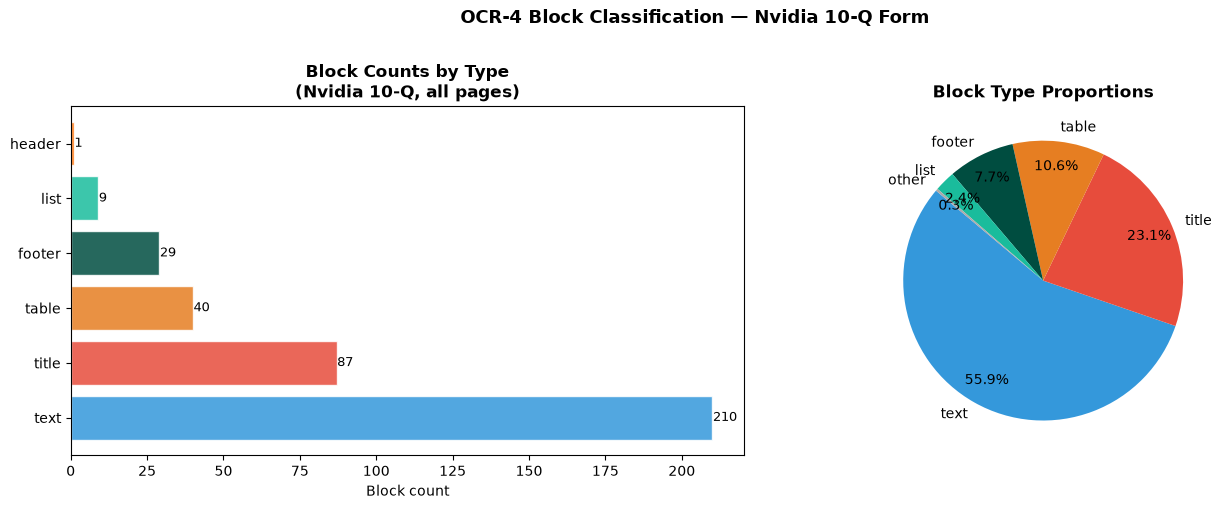

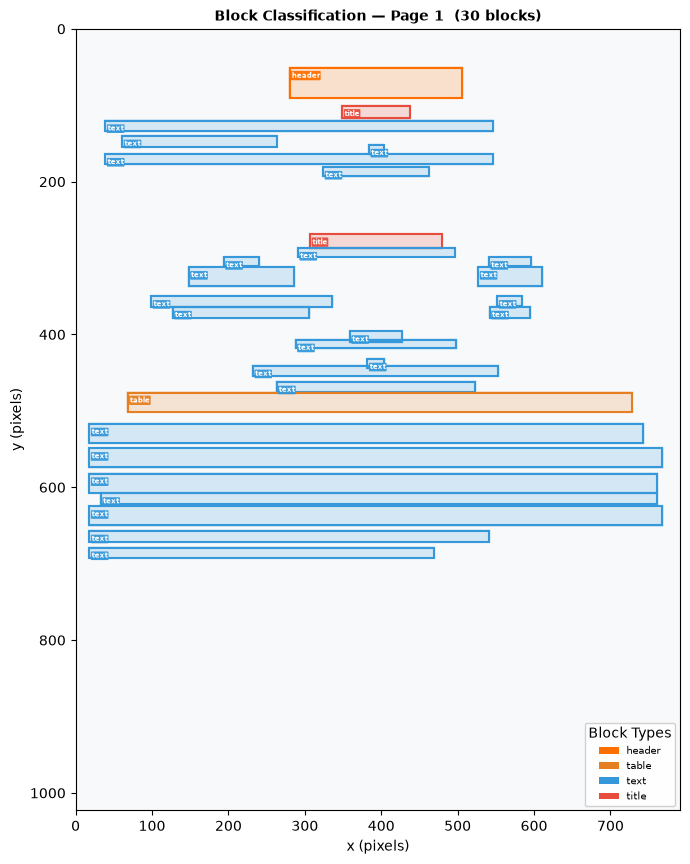

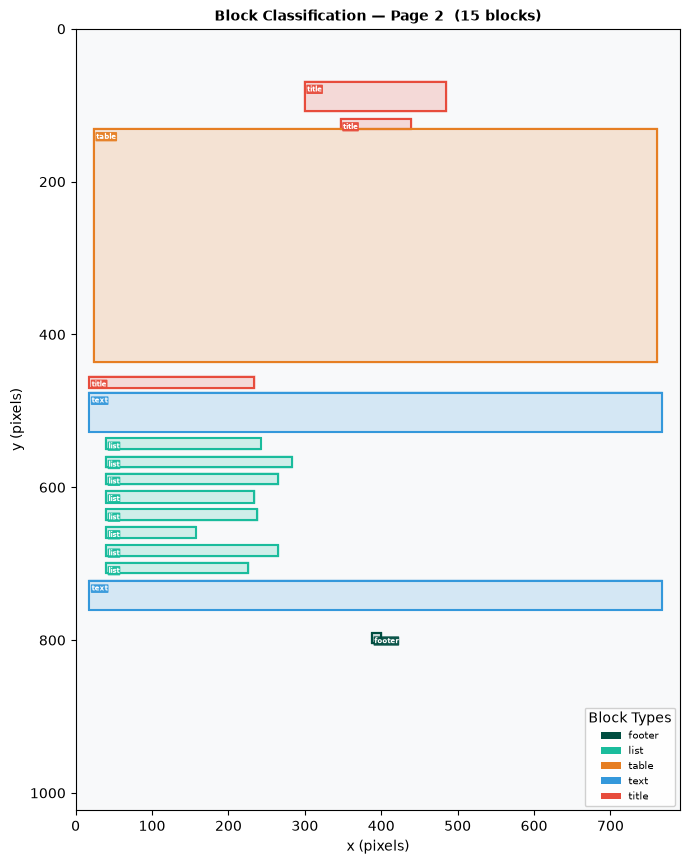

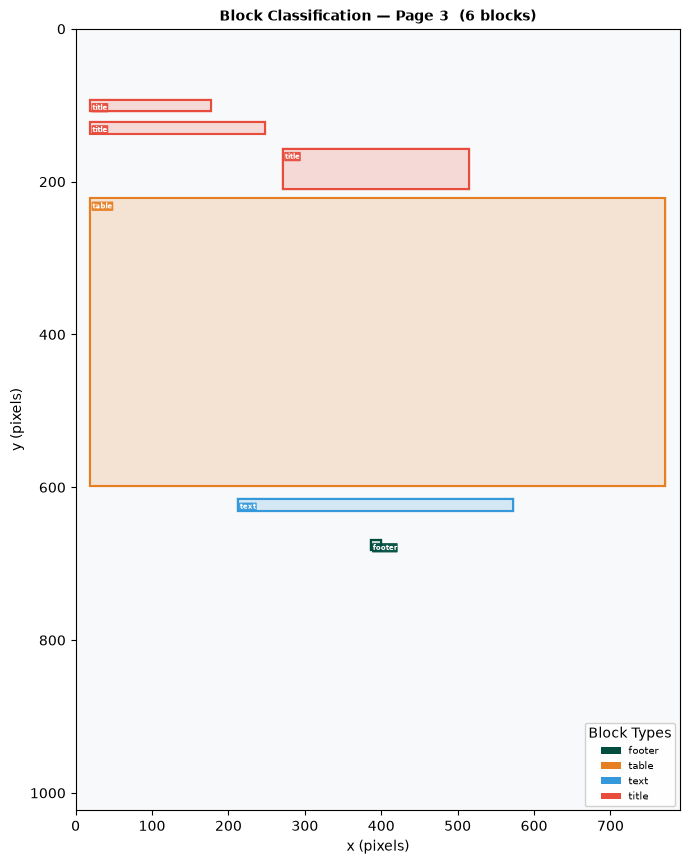

5	Clasificación de cajas delimitadoras	include_blocks: true — los 13 tipos de bloques semánticos

Documento: samples/Nvidia-10-Q-Form.pdf (páginas 1–30 de 45; el límite de la API es 30 páginas)
Modelo: mistral-ocr-4-0 a través de Azure AI Foundry

---

0. Configuración

import os
import matplotlib.pyplot as plt
import matplotlib.patches as patches
import numpy as np
import pandas as pd
import warnings
from IPython.display import Markdown, display
from dotenv import load_dotenv
from ocr4_utils import OCRConfig
from ocr4_utils import (
    BLOCK_COLORS,
    PARAGRAPH_TYPES,
    blocks_to_dataframe,
    encode_file,
    ocr_request,
)
from ocr4_utils import markdown_table_to_df

warnings.filterwarnings('ignore')
print('Libraries loaded successfully')

Libraries loaded successfully

config = OCRConfig.from_env()
ENDPOINT = config.endpoint
API_KEY = config.api_key
MODEL_NAME = config.model_name
HEADERS = config.headers
SAMPLES_DIR = os.path.join(os.path.dirname(os.path.abspath('__file__')), 'samples')
NVIDIA_PDF = os.path.join(SAMPLES_DIR, 'Nvidia-10-Q-Form-p1-30.pdf')

print(f'Model    : {MODEL_NAME}')

Model    : mistral-ocr-4-0

---

1. Llamada a la API de OCR-4

Una sola solicitud que habilita las cuatro características simultáneamente:

• include_blocks: true → cajas delimitadoras + clasificación de bloques
• confidence_scores_granularity: 'page' → confianza por página (regional)
• extract_header / extract_footer: true → captura encabezados/pies de página del documento
• table_format: 'markdown' → tablas renderizadas como markdown

payload = {
    'model': MODEL_NAME,
    'document': {
        'type': 'document_url',
        'document_url': f'data:application/pdf;base64,{encode_file(NVIDIA_PDF)}',
    },
    'include_blocks': True,
    'confidence_scores_granularity': 'page',
    'extract_header': True,
    'extract_footer': True,
    'table_format': 'markdown',
}

response   = ocr_request(payload)
pages      = response['pages']
n_pages    = len(pages)

print(f'Model           : {response["model"]}')
print(f'Pages processed : {n_pages}')
print(f'Usage           : {response.get("usage", {})}')

Model           : mistral-ocr-4-0
Pages processed : 30
Usage           : {}

---

2. Salida Markdown

OCR-4 convierte todo el PDF en markdown limpio, conservando:

• Jerarquía de encabezados (#, ##, ###)
• Tablas (renderizadas según table_format)
• Listas, énfasis en negrita/cursiva
• Expresiones matemáticas (LaTeX $…$)
• Referencias de imágenes (![…](…))

# ── 2a. Per-page markdown statistics ────────────────────────────────────────

md_stats = []
for p in pages:
    md = p.get('markdown') or ''
    lines  = md.splitlines()
    tables = sum(1 for l in lines if l.strip().startswith('|'))
    headings = sum(1 for l in lines if l.startswith('#'))
    md_stats.append({
        'Page':          p['index'] + 1,
        'Chars':         len(md),
        'Lines':         len(lines),
        'Headings':      headings,
        'Table lines':   tables,
    })

df_md = pd.DataFrame(md_stats).set_index('Page')
display(df_md)

total_chars = df_md['Chars'].sum()
print(f'\nTotal markdown characters : {total_chars:,}')

Chars  Lines  Headings  Table lines
Page
1      2473     59         2            0
2      1407     29         3            0
3       334     12         3            0
4       240      8         1            0
5       212      8         1            0
6       219      7         1            0
7       222      8         1            0
8      3750     37        10            0
9      1094     27         3            0
10      772     17         2            0
11     1551     19         2            0
12     1006     19         1            0
13     2544     37         6            0
14     1926     35         3            0
15     2635     25         4            0
16     2282     25         4            0
17     5268     23         4            0
18     5225     31         5            0
19     3250     25         2            0
20     1708     19         1            0
21     1213     23         2            0
22      429      5         1            0
23     5530     29         5            0
24     4074     28         1            0
25     2520     25         2            0
26     1260     21         4            0
27     4204     27         3            0
28     2321     29         3            0
29     3640     23         2            0
30     3779     31         5            0

	Chars	Lines	Headings	Table lines
Page
1	2473	59	2	0
2	1407	29	3	0
3	334	12	3	0
4	240	8	1	0
5	212	8	1	0
6	219	7	1	0
7	222	8	1	0
8	3750	37	10	0
9	1094	27	3	0
10	772	17	2	0
11	1551	19	2	0
12	1006	19	1	0
13	2544	37	6	0
14	1926	35	3	0
15	2635	25	4	0
16	2282	25	4	0
17	5268	23	4	0
18	5225	31	5	0
19	3250	25	2	0
20	1708	19	1	0
21	1213	23	2	0
22	429	5	1	0
23	5530	29	5	0
24	4074	28	1	0
25	2520	25	2	0
26	1260	21	4	0
27	4204	27	3	0
28	2321	29	3	0
29	3640	23	2	0
30	3779	31	5	0

Total markdown characters : 67,088

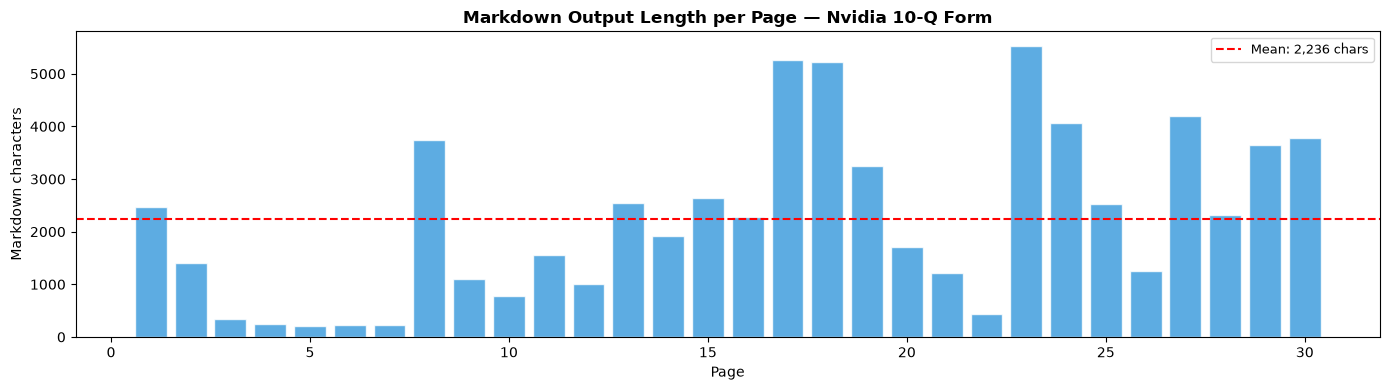

# ── 2b. Character count per page (document density) ─────────────────────────

fig, ax = plt.subplots(figsize=(14, 4))
page_nums = df_md.index.tolist()
chars     = df_md['Chars'].tolist()
bars = ax.bar(page_nums, chars, color='#3498DB', alpha=0.8, edgecolor='white')
ax.set_xlabel('Page')
ax.set_ylabel('Markdown characters')
ax.set_title('Markdown Output Length per Page — Nvidia 10-Q Form', fontweight='bold')
ax.axhline(y=np.mean(chars), color='red', linestyle='--', linewidth=1.5,
           label=f'Mean: {int(np.mean(chars)):,} chars')
ax.legend(fontsize=9)
plt.tight_layout()
plt.show()

<Figure size 1400x400 with 1 Axes>

# ── 2ca. Rendered markdown preview: first 1 500 characters of page 1 ──────────

page1_md = pages[0].get('markdown', '')
display(Markdown(f'### Page 1 — Markdown Preview\n\n{page1_md[:1500]}\n\n*(truncated)*'))

<IPython.core.display.Markdown object>

# ── 2d. Export full markdown to file ────────────────────────────────────────

full_md = '\n\n---\n\n'.join(
    f'<!-- Page {p["index"] + 1} -->\n{p.get("markdown", "")}'
    for p in pages
)

output_md_path = os.path.join(os.path.dirname(os.path.abspath('__file__')),
                               'nvidia_10q_ocr4_output.md')
with open(output_md_path, 'w', encoding='utf-8') as f:
    f.write(full_md)

print(f'Full markdown saved to: {output_md_path}')
print(f'File size             : {os.path.getsize(output_md_path):,} bytes')

Full markdown saved to: /Users/peymanmohajerian/Documents/tech/microsoft/cook-book/microsoft/ocr4-doc-ai/nvidia_10q_ocr4_output.md
File size             : 67,834 bytes

2e. Quinta opción: manejo de tablas en la página 6 con celdas vacías preservadas

Cuando las tablas de OCR contienen celdas en blanco, el riesgo principal es que un valor faltante desplace las columnas restantes hacia la izquierda. El enfoque más seguro es rellenar las filas cortas antes de construir un DataFrame para que los espacios en blanco permanezcan en su lugar y no corrompan el resultado.

Este ejemplo usa la tabla de la página 6 del informe 10-Q de Nvidia y muestra que las celdas vacías se tratan como valores faltantes, no como datos que mueven las columnas vecinas.

# ── 2e. Fifth table-handling option: page 6, empty cells preserved ────────
page6 = next((page for page in pages if page.get('index') == 5), pages[5])
page6_table_md = next(
    (
        (table.get('content') or '').strip()
        for table in page6.get('tables', [])
        if (table.get('content') or '').strip()
    ),
    '',
)

if page6_table_md:
    page6_df = markdown_table_to_df(page6_table_md)
    display(Markdown('### Page 6 — empty-cell-safe table parsing'))
    display(page6_df.head(10))
    print(f'\nParsed rows: {len(page6_df)}')
    print('Blank cells preserved as missing values:')
    print(page6_df.isna().sum().to_dict())
    print('\nColumns remain aligned after padding short rows:')
    display(page6_df.fillna('').astype(str).replace('nan', ''))
else:
    print('No table content was returned for page 6.')

<IPython.core.display.Markdown object>

Common Stock Outstanding  \
0               (In millions, except per share data)                   Shares
1                        Balances as of Jan 25, 2026                   24,304
2                                         Net income                        —
3                           Other comprehensive loss                        —
4                           Issuance of common stock                       37
5            Tax withholding related to common stock                     (12)
6                                 Shares repurchased                    (108)
7  Cash dividends declared and paid ($0.01 per co...                        —
8                           Stock-based compensation                        —
9                        Balances as of Apr 26, 2026                   24,221

          Additional Paid-in Capital Accumulated Other Comprehensive Income  \
0  Amount                       <NA>                                   <NA>
1    $ 24                   $ 10,118                                  $ 178
2       —                          —                                      —
3       —                          —                                   (41)
4       —                        515                                      —
5       —                    (2,129)                                      —
6       —                      (157)                                      —
7       —                          —                                      —
8       —                      1,928                                      —
9    $ 24                   $ 10,275                                  $ 137

  Retained Earnings Total Shareholders' Equity
0              <NA>                       <NA>
1         $ 146,973                  $ 157,293
2            58,321                     58,321
3                 —                       (41)
4                 —                        515
5                 —                    (2,129)
6          (20,013)                   (20,170)
7             (243)                      (243)
8                 —                      1,928
9         $ 185,038                  $ 195,474

		Common Stock Outstanding		Additional Paid-in Capital	Accumulated Other Comprehensive Income	Retained Earnings	Total Shareholders' Equity
0	(In millions, except per share data)	Shares	Amount	<NA>	<NA>	<NA>	<NA>
1	Balances as of Jan 25, 2026	24,304	$ 24	$ 10,118	$ 178	$ 146,973	$ 157,293
2	Net income	—	—	—	—	58,321	58,321
3	Other comprehensive loss	—	—	—	(41)	—	(41)
4	Issuance of common stock	37	—	515	—	—	515
5	Tax withholding related to common stock	(12)	—	(2,129)	—	—	(2,129)
6	Shares repurchased	(108)	—	(157)	—	(20,013)	(20,170)
7	Cash dividends declared and paid ($0.01 per co...	—	—	—	—	(243)	(243)
8	Stock-based compensation	—	—	1,928	—	—	1,928
9	Balances as of Apr 26, 2026	24,221	$ 24	$ 10,275	$ 137	$ 185,038	$ 195,474

Parsed rows: 20
Blank cells preserved as missing values:
{'': 0, 'Common Stock Outstanding': 0, 'Additional Paid-in Capital': 1, 'Accumulated Other Comprehensive Income': 1, 'Retained Earnings': 1, "Total Shareholders' Equity": 1}

Columns remain aligned after padding short rows:

\
0                (In millions, except per share data)
1                         Balances as of Jan 25, 2026
2                                          Net income
3                            Other comprehensive loss
4                            Issuance of common stock
5             Tax withholding related to common stock
6                                  Shares repurchased
7   Cash dividends declared and paid ($0.01 per co...
8                            Stock-based compensation
9                         Balances as of Apr 26, 2026
10                        Balances as of Jan 26, 2025
11                                         Net income
12                         Other comprehensive income
13                           Issuance of common stock
14            Tax withholding related to common stock
15                                 Shares repurchased
16  Cash dividends declared and paid ($0.01 per co...
17  Fair value of partially vested equity awards a...
18                           Stock-based compensation
19                        Balances as of Apr 27, 2025

   Common Stock Outstanding         Additional Paid-in Capital  \
0                    Shares  Amount
1                    24,304    $ 24                   $ 10,118
2                         —       —                          —
3                         —       —                          —
4                        37       —                        515
5                      (12)       —                    (2,129)
6                     (108)       —                      (157)
7                         —       —                          —
8                         —       —                      1,928
9                    24,221    $ 24                   $ 10,275
10                   24,477    $ 24                   $ 11,237
11                        —       —                          —
12                        —       —                          —
13                       50       —                        370
14                     (13)       —                    (1,532)
15                    (126)       —                       (92)
16                        —       —                          —
17                        —       —                         22
18                        —       —                      1,470
19                   24,388    $ 24                   $ 11,475

   Accumulated Other Comprehensive Income Retained Earnings  \
0
1                                   $ 178         $ 146,973
2                                       —            58,321
3                                    (41)                 —
4                                       —                 —
5                                       —                 —
6                                       —          (20,013)
7                                       —             (243)
8                                       —                 —
9                                   $ 137         $ 185,038
10                                   $ 28          $ 68,038
11                                      —            18,775
12                                    158                 —
13                                      —                 —
14                                      —                 —
15                                      —          (14,411)
16                                      —             (244)
17                                      —                 —
18                                      —                 —
19                                  $ 186          $ 72,158

   Total Shareholders' Equity
0
1                   $ 157,293
2                      58,321
3                        (41)
4                         515
5                     (2,129)
6                    (20,170)
7                       (243)
8                       1,928
9                   $ 195,474
10                   $ 79,327
11                     18,775
12                        158
13                        370
14                    (1,532)
15                   (14,503)
16                      (244)
17                         22
18                      1,470
19                   $ 83,843

3. Cajas delimitadoras a nivel de párrafo

OCR-4 devuelve las coordenadas de píxeles para cada bloque detectado.
Los bloques a nivel de párrafo incluyen: text, title, list, aside_text, caption, references.

Cada bloque de párrafo contiene:

top_left_x / top_left_y         (origin corner, pixels)
bottom_right_x / bottom_right_y (opposite corner, pixels)
type                             (semantic classification)
content                          (extracted text in markdown)

# ── 3a. Collect all paragraph-level blocks across the document ───────────────

para_rows = []
for p in pages:
    dims = p.get('dimensions') or {}
    for b in (p.get('blocks') or []):
        if b['type'] in PARAGRAPH_TYPES:
            w = b['bottom_right_x'] - b['top_left_x']
            h = b['bottom_right_y'] - b['top_left_y']
            para_rows.append({
                'page':        p['index'] + 1,
                'type':        b['type'],
                'x1':          b['top_left_x'],
                'y1':          b['top_left_y'],
                'x2':          b['bottom_right_x'],
                'y2':          b['bottom_right_y'],
                'width_px':    w,
                'height_px':   h,
                'area_px2':    w * h,
                'page_width':  dims.get('width', 0),
                'page_height': dims.get('height', 0),
                'content':     b['content'],
            })

df_para = pd.DataFrame(para_rows)
print(f'Total paragraph-level blocks : {len(df_para)}')
print(f'Across pages                 : {df_para["page"].nunique()} / {n_pages}')
print()
print(df_para['type'].value_counts().to_string())

Total paragraph-level blocks : 306
Across pages                 : 30 / 30

type
text     210
title     87
list       9

# ── 3b. Paragraph bounding box table (first 20 rows) ─────────────────────────

df_display = df_para[['page', 'type', 'x1', 'y1', 'x2', 'y2',
                        'width_px', 'height_px', 'area_px2']].copy()
df_display['content_preview'] = df_para['content'].str[:60].str.replace('\n', ' ') + '…'
display(df_display.head(20))

page   type   x1   y1   x2   y2  width_px  height_px  area_px2  \
0      1  title  349  101  437  117        88         16      1408
1      1   text   39  120  546  134       507         14      7098
2      1   text   61  140  263  154       202         14      2828
3      1   text  384  152  403  164        19         12       228
4      1   text   39  164  546  177       507         13      6591
5      1   text  324  181  462  193       138         12      1656
6      1  title  307  269  479  287       172         18      3096
7      1   text  291  287  496  298       205         11      2255
8      1   text  194  299  240  310        46         11       506
9      1   text  148  312  286  337       138         25      3450
10     1   text  541  299  596  310        55         11       605
11     1   text  527  312  611  337        84         25      2100
12     1   text   99  350  336  364       237         14      3318
13     1   text  127  364  306  378       179         14      2506
14     1   text  552  350  584  363        32         13       416
15     1   text  542  364  595  378        53         14       742
16     1   text  359  396  427  410        68         14       952
17     1   text  288  407  498  418       210         11      2310
18     1   text  382  432  404  444        22         12       264
19     1   text  232  441  553  454       321         13      4173

                                      content_preview
0                                        # FORM 10-Q…
1   ☒ QUARTERLY REPORT PURSUANT TO SECTION 13 OR 1...
2      For the quarterly period ended April 26, 2026…
3                                                 OR…
4   ☐ TRANSITION REPORT PURSUANT TO SECTION 13 OR ...
5                    Commission File Number: 0-23985…
6                               # NVIDIA CORPORATION…
7   (Exact name of registrant as specified in its ...
8                                           Delaware…
9   (State or other jurisdiction of incorporation ...
10                                        94-3177549…
11              (I.R.S. Employer Identification No.)…
12  2788 San Tomas Expressway, Santa Clara, Califo...
13          (Address of principal executive offices)…
14                                             95051…
15                                        (Zip Code)…
16                                    (408) 486-2000…
17  (Registrant's telephone number, including area...
18                                               N/A…
19  (Former name, former address and former fiscal...

# ── 3c. Paragraph bounding box overlay on the first three pages ──────────────

def render_paragraph_boxes(page_data: dict, para_types: set, title: str = '') -> None:
    """Render paragraph-level blocks as annotated rectangles on a white canvas."""
    dims   = page_data.get('dimensions') or {}
    width  = dims.get('width',  612)
    height = dims.get('height', 792)
    blocks = [b for b in (page_data.get('blocks') or []) if b['type'] in para_types]

    fig, ax = plt.subplots(figsize=(7, 10))
    ax.set_xlim(0, width)
    ax.set_ylim(height, 0)
    ax.set_facecolor('#F8F9FA')
    ax.set_aspect('equal')

    seen_types = set()
    for idx, b in enumerate(blocks):
        x1, y1 = b['top_left_x'], b['top_left_y']
        x2, y2 = b['bottom_right_x'], b['bottom_right_y']
        btype  = b['type']
        color  = BLOCK_COLORS.get(btype, '#888888')
        w, h   = x2 - x1, y2 - y1

        ax.add_patch(patches.Rectangle(
            (x1, y1), w, h,
            linewidth=0, facecolor=color, alpha=0.14
        ))
        ax.add_patch(patches.Rectangle(
            (x1, y1), w, h,
            linewidth=1.5, edgecolor=color, facecolor='none'
        ))
        ax.text(
            x1 + 3, y1 + 13, btype,
            fontsize=5, color='white', fontweight='bold',
            bbox=dict(boxstyle='round,pad=0.12', facecolor=color,
                      alpha=0.95, edgecolor='none'),
        )
        seen_types.add(btype)

    legend_handles = [
        patches.Patch(facecolor=BLOCK_COLORS.get(t, '#888'), label=t)
        for t in sorted(seen_types)
    ]
    ax.legend(handles=legend_handles, loc='lower right',
              fontsize=7, framealpha=0.9, title='Paragraph Types')
    ax.set_title(title, fontsize=10, fontweight='bold')
    ax.set_xlabel('x (pixels)')
    ax.set_ylabel('y (pixels)')
    plt.tight_layout()
    plt.show()


# Show first 3 pages
for page_obj in pages[:3]:
    pg_num = page_obj['index'] + 1
    dims   = page_obj.get('dimensions') or {}
    n_para = sum(1 for b in (page_obj.get('blocks') or [])
                 if b['type'] in PARAGRAPH_TYPES)
    render_paragraph_boxes(
        page_obj,
        para_types=PARAGRAPH_TYPES,
        title=f'Paragraph Bounding Boxes — Page {pg_num}  '
              f'({dims.get("width", "?")}×{dims.get("height", "?")} px, '
              f'{n_para} paragraph blocks)',
    )

<Figure size 700x1000 with 1 Axes>

<Figure size 700x1000 with 1 Axes>

<Figure size 700x1000 with 1 Axes>

# ── 3d. Paragraph block size distribution ────────────────────────────────────

fig, axes = plt.subplots(1, 3, figsize=(16, 4))

# Width distribution
axes[0].hist(df_para['width_px'], bins=30, color='#3498DB', edgecolor='white', alpha=0.85)
axes[0].set_xlabel('Width (px)')
axes[0].set_ylabel('Block count')
axes[0].set_title('Paragraph Block Width', fontweight='bold')

# Height distribution
axes[1].hist(df_para['height_px'], bins=30, color='#E74C3C', edgecolor='white', alpha=0.85)
axes[1].set_xlabel('Height (px)')
axes[1].set_ylabel('Block count')
axes[1].set_title('Paragraph Block Height', fontweight='bold')

# Area scatter by type
for btype in df_para['type'].unique():
    subset = df_para[df_para['type'] == btype]
    axes[2].scatter(subset['width_px'], subset['height_px'],
                    label=btype, color=BLOCK_COLORS.get(btype, '#888'),
                    alpha=0.6, s=30)
axes[2].set_xlabel('Width (px)')
axes[2].set_ylabel('Height (px)')
axes[2].set_title('Width × Height by Block Type', fontweight='bold')
axes[2].legend(fontsize=7)

plt.suptitle('Paragraph-Level Bounding Box Geometry — Nvidia 10-Q',
             fontsize=12, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

<Figure size 1600x400 with 3 Axes>

# ── 3e. Paragraph blocks per page ────────────────────────────────────────────

para_per_page = df_para.groupby('page').size().reindex(range(1, n_pages + 1), fill_value=0)

fig, ax = plt.subplots(figsize=(14, 4))
ax.bar(para_per_page.index, para_per_page.values,
       color='#2ECC71', alpha=0.85, edgecolor='white')
ax.set_xlabel('Page')
ax.set_ylabel('Paragraph block count')
ax.set_title('Paragraph-Level Blocks per Page — Nvidia 10-Q', fontweight='bold')
ax.axhline(y=para_per_page.mean(), color='red', linestyle='--', linewidth=1.5,
           label=f'Mean: {para_per_page.mean():.1f}')
ax.legend(fontsize=9)
plt.tight_layout()
plt.show()

<Figure size 1400x400 with 1 Axes>

4. Confianza a nivel regional

Con confidence_scores_granularity: 'page', OCR-4 devuelve métricas de confianza por página (regional):

Las puntuaciones van de 0 → 1. Las páginas por debajo de ~0.85 pueden contener regiones de baja resolución, fuentes inusuales o diseños complejos.

# ── 4a. Extract per-page confidence scores ────────────────────────────────────

conf_rows = []
for p in pages:
    cs = p.get('confidence_scores') or {}
    avg = cs.get('average_page_confidence_score')
    mn  = cs.get('minimum_page_confidence_score')
    conf_rows.append({
        'page':    p['index'] + 1,
        'avg':     avg,
        'minimum': mn,
        'range':   (avg - mn) if (avg is not None and mn is not None) else None,
    })

df_conf = pd.DataFrame(conf_rows).set_index('page')

print('Regional (page-level) confidence scores:')
print()
display(df_conf.style.format({
    'avg':     '{:.4f}',
    'minimum': '{:.4f}',
    'range':   '{:.4f}',
}).background_gradient(subset=['avg'], cmap='RdYlGn', vmin=0.8, vmax=1.0))

Regional (page-level) confidence scores:

<pandas.io.formats.style.Styler at 0x115a8cec0>

# ── 4b. Per-page confidence bar chart ────────────────────────────────────────

valid = df_conf.dropna(subset=['avg'])

fig, ax = plt.subplots(figsize=(14, 5))

bar_colors = ['#E74C3C' if v < 0.85 else '#2ECC71' for v in valid['avg']]
bars = ax.bar(valid.index, valid['avg'], color=bar_colors, alpha=0.85,
               edgecolor='white', label='Avg confidence')

# Plot minimum as scatter overlay
ax.scatter(valid.index, valid['minimum'], color='#E67E22', zorder=5,
           s=40, label='Min confidence')

ax.axhline(y=0.90, color='gray',    linestyle='--', alpha=0.5, label='0.90 threshold')
ax.axhline(y=0.85, color='orange',  linestyle=':',  alpha=0.6, label='0.85 threshold')
ax.axhline(y=valid['avg'].mean(), color='#2980B9', linestyle='-', linewidth=1.5,
           label=f'Doc mean {valid["avg"].mean():.4f}')

ax.set_ylim(0, 1.08)
ax.set_xlabel('Page (region)')
ax.set_ylabel('Confidence score')
ax.set_title('Regional (Page-Level) Confidence — Nvidia 10-Q Form', fontweight='bold')
ax.legend(fontsize=9, loc='lower left')

for bar, val in zip(bars, valid['avg']):
    ax.text(bar.get_x() + bar.get_width() / 2, bar.get_height() + 0.003,
            f'{val:.3f}', ha='center', va='bottom', fontsize=6.5)

plt.tight_layout()
plt.show()

<Figure size 1400x500 with 1 Axes>

# ── 4c. Confidence heatmap strip (avg vs minimum per page) ───────────────────

fig, axes = plt.subplots(2, 1, figsize=(14, 3.5), sharex=True)

for ax, col, label, cmap in zip(
    axes,
    ['avg', 'minimum'],
    ['Average Confidence', 'Minimum Confidence'],
    ['RdYlGn', 'RdYlGn'],
):
    vals = valid[col].values.reshape(1, -1)
    im = ax.imshow(vals, aspect='auto', cmap=cmap, vmin=0.75, vmax=1.0)
    ax.set_yticks([0])
    ax.set_yticklabels([label], fontsize=9)
    ax.set_xticks(range(len(valid)))
    ax.set_xticklabels([f'p{i}' for i in valid.index], fontsize=7)
    plt.colorbar(im, ax=ax, orientation='vertical', fraction=0.015, pad=0.01)
    for j, v in enumerate(vals[0]):
        ax.text(j, 0, f'{v:.3f}', ha='center', va='center', fontsize=6,
                color='black' if v > 0.85 else 'white')

plt.suptitle('Confidence Heatmap — Nvidia 10-Q (green = high, red = low)',
             fontsize=11, fontweight='bold')
plt.tight_layout()
plt.show()

<Figure size 1400x350 with 4 Axes>

# ── 4d. Confidence summary statistics ────────────────────────────────────────

avg_scores = valid['avg'].dropna()
min_scores = valid['minimum'].dropna()

summary = pd.DataFrame({
    'Metric':         ['Document mean', 'Document min', 'Document max',
                       'Pages ≥ 0.90',  'Pages ≥ 0.85', 'Pages < 0.85'],
    'Avg confidence': [
        f'{avg_scores.mean():.4f}',
        f'{avg_scores.min():.4f}  (page {avg_scores.idxmin()})',
        f'{avg_scores.max():.4f}  (page {avg_scores.idxmax()})',
        f'{(avg_scores >= 0.90).sum()} / {len(avg_scores)}',
        f'{(avg_scores >= 0.85).sum()} / {len(avg_scores)}',
        f'{(avg_scores < 0.85).sum()} / {len(avg_scores)}',
    ],
    'Min confidence': [
        f'{min_scores.mean():.4f}',
        f'{min_scores.min():.4f}  (page {min_scores.idxmin()})',
        f'{min_scores.max():.4f}  (page {min_scores.idxmax()})',
        f'{(min_scores >= 0.90).sum()} / {len(min_scores)}',
        f'{(min_scores >= 0.85).sum()} / {len(min_scores)}',
        f'{(min_scores < 0.85).sum()} / {len(min_scores)}',
    ],
}).set_index('Metric')

display(summary)

Avg confidence     Min confidence
Metric
Document mean             0.9873             0.3408
Document min   0.9750  (page 22)  0.2225  (page 12)
Document max    0.9950  (page 6)  0.4097  (page 20)
Pages ≥ 0.90             30 / 30             0 / 30
Pages ≥ 0.85             30 / 30             0 / 30
Pages < 0.85              0 / 30            30 / 30

5. Clasificación de cuadros delimitadores

Cada bloque se clasifica en uno de 13 tipos semánticos:

La clasificación permite tareas posteriores como:

• Extracción de tablas (filtrar bloques table)
• Subtitulado de figuras (emparejar image con bloques caption adyacentes)
• Eliminación de encabezados/pies de página para un texto limpio

# ── 5a. Collect ALL blocks (all types) across every page ─────────────────────

all_rows = []
for p in pages:
    dims = p.get('dimensions') or {}
    for b in (p.get('blocks') or []):
        w = b['bottom_right_x'] - b['top_left_x']
        h = b['bottom_right_y'] - b['top_left_y']
        all_rows.append({
            'page':        p['index'] + 1,
            'type':        b['type'],
            'x1':          b['top_left_x'],
            'y1':          b['top_left_y'],
            'x2':          b['bottom_right_x'],
            'y2':          b['bottom_right_y'],
            'width_px':    w,
            'height_px':   h,
            'area_px2':    w * h,
            'content_len': len(b['content']),
        })

df_all = pd.DataFrame(all_rows)
print(f'Total blocks across {n_pages} pages: {len(df_all)}')
print()
print(df_all['type'].value_counts().to_string())

Total blocks across 30 pages: 376

type
text      210
title      87
table      40
footer     29
list        9
header      1

# ── 5b. Block-type distribution: bar + pie ────────────────────────────────────

type_counts = df_all['type'].value_counts()
colors      = [BLOCK_COLORS.get(t, '#888888') for t in type_counts.index]

fig, (ax_bar, ax_pie) = plt.subplots(1, 2, figsize=(14, 5))

# Bar chart
bars = ax_bar.barh(type_counts.index, type_counts.values,
                    color=colors, alpha=0.85, edgecolor='white')
for bar, val in zip(bars, type_counts.values):
    ax_bar.text(bar.get_width() + 0.2, bar.get_y() + bar.get_height() / 2,
                str(val), va='center', fontsize=9)
ax_bar.set_xlabel('Block count')
ax_bar.set_title('Block Counts by Type\n(Nvidia 10-Q, all pages)', fontweight='bold')

# Pie chart
threshold = 0.02 * type_counts.sum()
major     = type_counts[type_counts >= threshold].copy()
minor_sum = int(type_counts[type_counts < threshold].sum())
if minor_sum > 0:
    major = pd.concat([major, pd.Series([minor_sum], index=['other'])])
pie_labels = list(major.index)
pie_colors = [BLOCK_COLORS.get(lbl, '#AAAAAA') for lbl in pie_labels]
ax_pie.pie(major.values, labels=pie_labels, colors=pie_colors,
           autopct='%1.1f%%', startangle=140, pctdistance=0.82)
ax_pie.set_title('Block Type Proportions', fontweight='bold')

plt.suptitle('OCR-4 Block Classification — Nvidia 10-Q Form',
             fontsize=13, fontweight='bold', y=1.01)
plt.tight_layout()
plt.show()

<Figure size 1400x500 with 2 Axes>

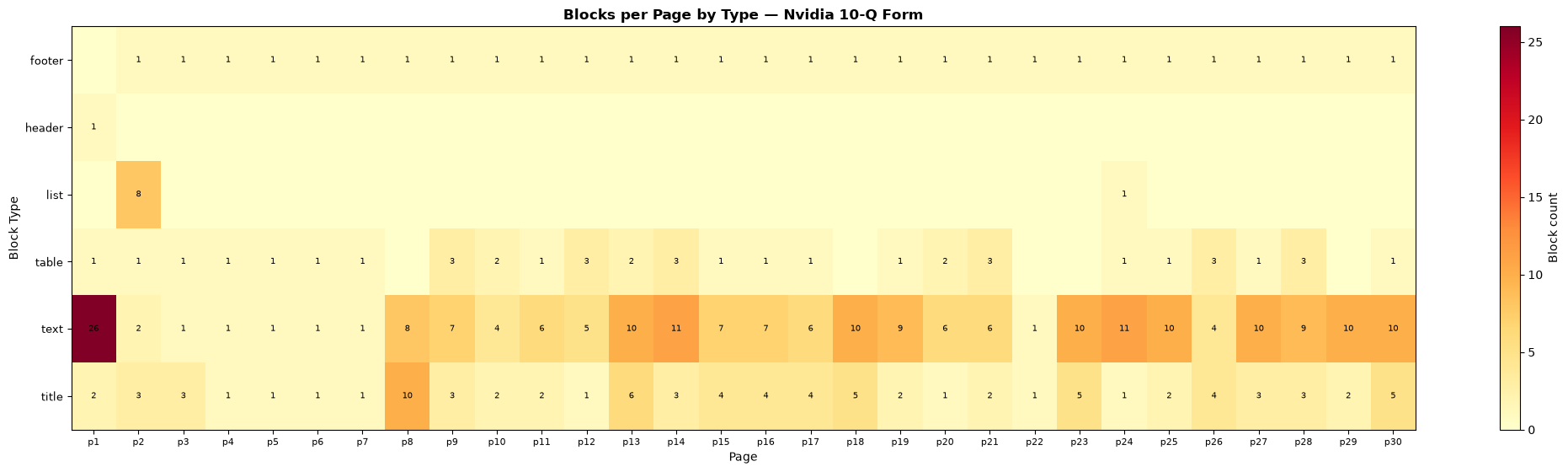

# ── 5c. Block-type heat-map: type × page ─────────────────────────────────────

pivot = (
    df_all.groupby(['type', 'page'])
    .size()
    .unstack(fill_value=0)
    .reindex(columns=range(1, n_pages + 1), fill_value=0)
)

fig, ax = plt.subplots(figsize=(max(10, n_pages * 0.7), len(pivot) * 0.7 + 1.5))
im = ax.imshow(pivot.values, aspect='auto', cmap='YlOrRd')

ax.set_xticks(range(n_pages))
ax.set_xticklabels([f'p{i}' for i in range(1, n_pages + 1)], fontsize=8)
ax.set_yticks(range(len(pivot.index)))
ax.set_yticklabels(pivot.index, fontsize=9)
ax.set_xlabel('Page')
ax.set_ylabel('Block Type')
ax.set_title('Blocks per Page by Type — Nvidia 10-Q Form', fontsize=12, fontweight='bold')

for i in range(len(pivot.index)):
    for j in range(n_pages):
        val = pivot.values[i, j]
        if val > 0:
            ax.text(j, i, str(val), ha='center', va='center',
                    fontsize=7, color='black')

plt.colorbar(im, ax=ax, label='Block count')
plt.tight_layout()
plt.show()

<Figure size 2100x570 with 2 Axes>

# ── 5d. Full block classification overlay on first three pages ───────────────

def render_all_blocks(page_data: dict, title: str = '') -> None:
    """Render ALL block types (including tables, images, headers) on one canvas."""
    dims   = page_data.get('dimensions') or {}
    width  = dims.get('width',  612)
    height = dims.get('height', 792)
    blocks = page_data.get('blocks') or []

    fig, ax = plt.subplots(figsize=(7, 10))
    ax.set_xlim(0, width)
    ax.set_ylim(height, 0)
    ax.set_facecolor('#F8F9FA')
    ax.set_aspect('equal')

    seen_types = set()
    for b in blocks:
        x1, y1 = b['top_left_x'], b['top_left_y']
        x2, y2 = b['bottom_right_x'], b['bottom_right_y']
        btype  = b['type']
        color  = BLOCK_COLORS.get(btype, '#888888')
        w, h   = x2 - x1, y2 - y1

        ax.add_patch(patches.FancyBboxPatch(
            (x1, y1), w, h,
            boxstyle='round,pad=2',
            linewidth=0, facecolor=color, alpha=0.18,
        ))
        ax.add_patch(patches.Rectangle(
            (x1, y1), w, h,
            linewidth=1.5, edgecolor=color, facecolor='none'
        ))
        ax.text(
            x1 + 3, y1 + 13, btype,
            fontsize=5, color='white', fontweight='bold',
            bbox=dict(boxstyle='round,pad=0.12', facecolor=color,
                      alpha=0.95, edgecolor='none'),
        )
        seen_types.add(btype)

    legend_handles = [
        patches.Patch(facecolor=BLOCK_COLORS.get(t, '#888'), label=t)
        for t in sorted(seen_types)
    ]
    ax.legend(handles=legend_handles, loc='lower right',
              fontsize=7, framealpha=0.9, title='Block Types')
    ax.set_title(title, fontsize=10, fontweight='bold')
    ax.set_xlabel('x (pixels)')
    ax.set_ylabel('y (pixels)')
    plt.tight_layout()
    plt.show()


for page_obj in pages[:3]:
    pg_num = page_obj['index'] + 1
    n_blk  = len(page_obj.get('blocks') or [])
    render_all_blocks(
        page_obj,
        title=f'Block Classification — Page {pg_num}  ({n_blk} blocks)',
    )

<Figure size 700x1000 with 1 Axes>

<Figure size 700x1000 with 1 Axes>

<Figure size 700x1000 with 1 Axes>

# ── 5e. One example per detected block type ──────────────────────────────────

print('Block Classification Examples — Nvidia 10-Q')
print('=' * 72)
for btype in df_all['type'].unique():
    row     = df_all[df_all['type'] == btype].iloc[0]
    # look up raw content from pages
    page_blocks = pages[row['page'] - 1].get('blocks') or []
    match = next(
        (b for b in page_blocks
         if b['type'] == btype
         and b['top_left_x'] == row['x1']
         and b['top_left_y'] == row['y1']),
        None
    )
    content = match['content'][:120].replace('\n', ' ') if match else '(n/a)'
    count   = (df_all['type'] == btype).sum()
    print(f'\n  TYPE : {btype.upper():12s}  ({count} across doc)')
    print(f'  PAGE : {row["page"]}')
    print(f'  BBOX : ({row["x1"]}, {row["y1"]}) → ({row["x2"]}, {row["y2"]})  '
          f'[{row["width_px"]}×{row["height_px"]}px]')
    print(f'  TEXT : {content}{"…" if len(content) == 120 else ""}')
    print('-' * 72)

Block Classification Examples — Nvidia 10-Q
========================================================================

  TYPE : HEADER        (1 across doc)
  PAGE : 1
  BBOX : (280, 51) → (506, 90)  [226×39px]
  TEXT : UNITED STATES SECURITIES AND EXCHANGE COMMISSION Washington, D.C. 20549
------------------------------------------------------------------------

  TYPE : TITLE         (87 across doc)
  PAGE : 1
  BBOX : (349, 101) → (437, 117)  [88×16px]
  TEXT : # FORM 10-Q
------------------------------------------------------------------------

  TYPE : TEXT          (210 across doc)
  PAGE : 1
  BBOX : (39, 120) → (546, 134)  [507×14px]
  TEXT : ☒ QUARTERLY REPORT PURSUANT TO SECTION 13 OR 15(d) OF THE SECURITIES EXCHANGE ACT OF 1934
------------------------------------------------------------------------

  TYPE : TABLE         (40 across doc)
  PAGE : 1
  BBOX : (68, 476) → (728, 501)  [660×25px]
  TEXT : |  Title of each class | Trading Symbol(s) | Name of each exchange on which registered  | | --- | --- | --- | |  Common …
------------------------------------------------------------------------

  TYPE : LIST          (9 across doc)
  PAGE : 2
  BBOX : (40, 536) → (242, 550)  [202×14px]
  TEXT : NVIDIA Corporate Blog (blogs.nvidia.com/)
------------------------------------------------------------------------

  TYPE : FOOTER        (29 across doc)
  PAGE : 2
  BBOX : (388, 791) → (400, 804)  [12×13px]
  TEXT : 2
------------------------------------------------------------------------

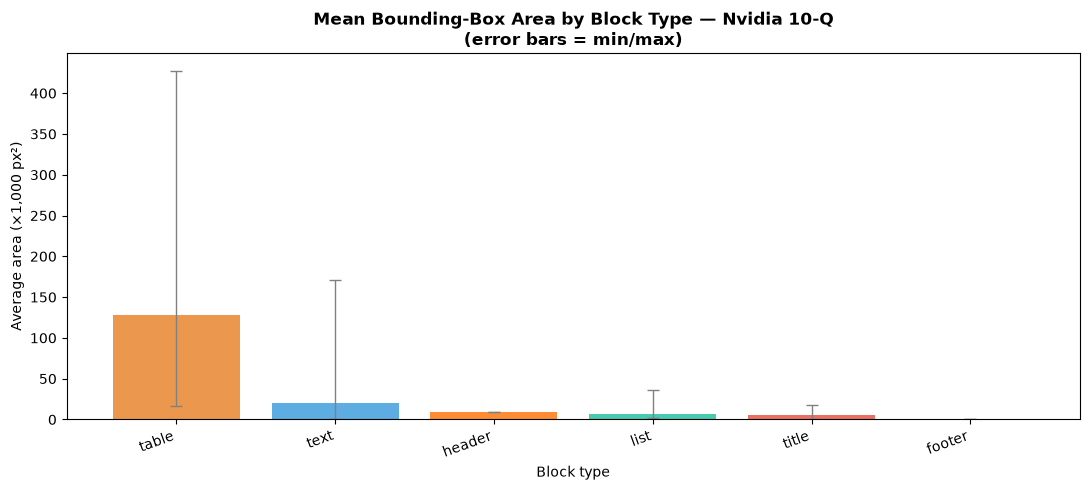

# ── 5f. Average bounding-box area per block type ─────────────────────────────

area_stats = (
    df_all.groupby('type')['area_px2']
    .agg(['mean', 'median', 'min', 'max', 'count'])
    .sort_values('mean', ascending=False)
    .rename(columns={'mean': 'avg_area', 'median': 'med_area',
                     'min': 'min_area', 'max': 'max_area', 'count': 'n'})
)

fig, ax = plt.subplots(figsize=(11, 5))
colors = [BLOCK_COLORS.get(t, '#888888') for t in area_stats.index]
x_pos  = np.arange(len(area_stats))
ax.bar(x_pos, area_stats['avg_area'] / 1_000, color=colors, alpha=0.8)
ax.errorbar(
    x=x_pos,
    y=area_stats['avg_area'].to_numpy() / 1_000,
    yerr=[
        (area_stats['avg_area'] - area_stats['min_area']).to_numpy() / 1_000,
        (area_stats['max_area'] - area_stats['avg_area']).to_numpy() / 1_000,
    ],
    fmt='none', color='gray', capsize=4, linewidth=1,
)
ax.set_xticks(x_pos)
ax.set_xticklabels(area_stats.index, rotation=20, ha='right')
ax.set_ylabel('Average area (×1,000 px²)')
ax.set_xlabel('Block type')
ax.set_title('Mean Bounding-Box Area by Block Type — Nvidia 10-Q\n(error bars = min/max)',
             fontweight='bold')
plt.tight_layout()
plt.show()

display(area_stats.style.format({
    'avg_area': '{:,.0f}',
    'med_area': '{:,.0f}',
    'min_area': '{:,.0f}',
    'max_area': '{:,.0f}',
}))

<Figure size 1100x500 with 1 Axes>

<pandas.io.formats.style.Styler at 0x11640d450>

6. Resumen

# ── 6. Final summary dashboard ────────────────────────────────────────────────

avg_conf    = valid['avg'].mean() if len(valid) else float('nan')
min_conf    = valid['minimum'].min() if len(valid) else float('nan')
n_para_blk  = len(df_para)
n_all_blk   = len(df_all)
types_found = sorted(df_all['type'].unique())

summary_md = f"""
### OCR-4 Results — Nvidia 10-Q Form

| Metric | Value |
|--------|-------|
| Pages processed | {n_pages} |
| Total markdown chars | {df_md['Chars'].sum():,} |
| Paragraph-level blocks | {n_para_blk} ({', '.join(sorted(PARAGRAPH_TYPES & set(types_found)))}) |
| All block types detected | {len(types_found)}: {', '.join(f'`{t}`' for t in types_found)} |
| Total blocks (all types) | {n_all_blk} |
| Doc avg confidence | {avg_conf:.4f} |
| Doc min confidence | {min_conf:.4f} |
| Pages ≥ 0.90 confidence | {(valid['avg'] >= 0.90).sum()} / {len(valid)} |
"""

display(Markdown(summary_md))

<IPython.core.display.Markdown object>
